• Pickup box
• Differential, heavy-duty locking rear
• Transfer case, active, 2-speed electronic Autotrac with rotary controls, includes neutral position for dinghy towing (Included with 4WD models only.)
• Suspension Package
• Four wheel drive
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Frame, fully-boxed, hydroformed front section
• Recovery hooks, front, frame-mounted, black (Standard on 4WD models.)
• Cargo tie downs (4), movable upper
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) polished aluminum
• Tires, P265/65R18 all-terrain, blackwall
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model.)
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome lower
• Bumper, rear chrome with rear bumper corner steps
• CornerStep, rear bumper
• Moldings, bodyside, chrome

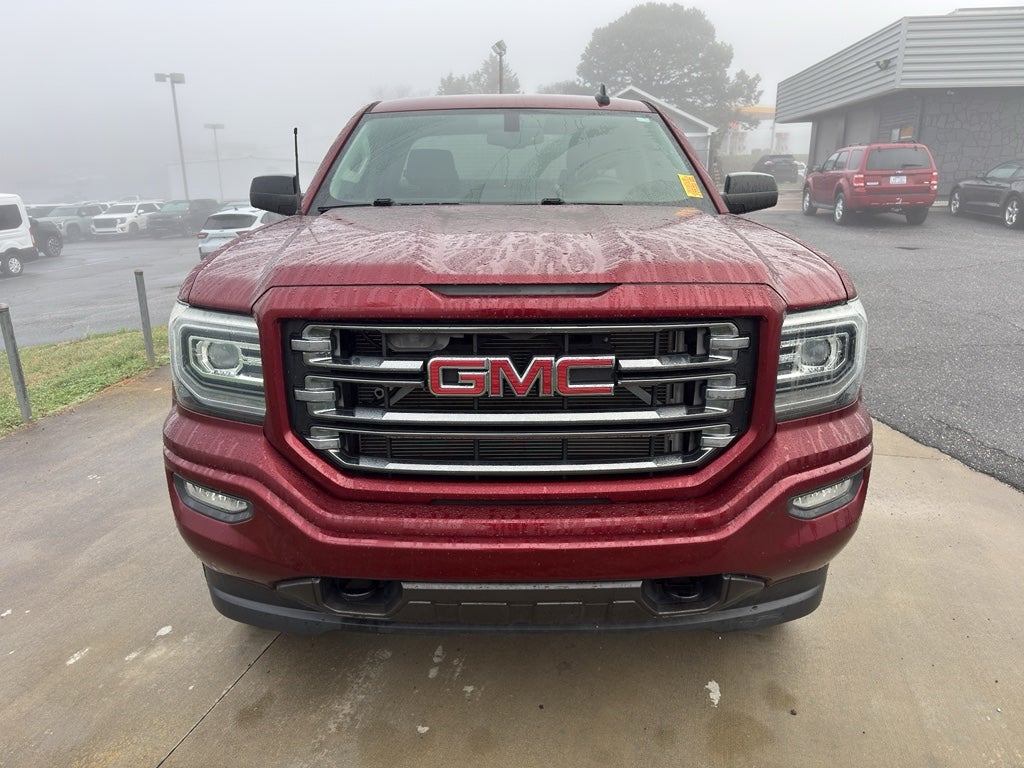

• Grille surround, chrome
• Headlamps, high intensity discharge (HID) projector-beam with LED signature (Not available at the start of production.)
• Fog lamps, thin profile LED
• Taillamps, LED with signature
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Glass, deep-tinted
• LED Lighting, cargo box with switch on center switch bank
• Tailgate and bed rail protection caps, top
• Remote Locking Tailgate (Included and only available with (AQQ) Remote Keyless Entry.)
• Tailgate, EZ-Lift and Lower
• Door handles, chrome

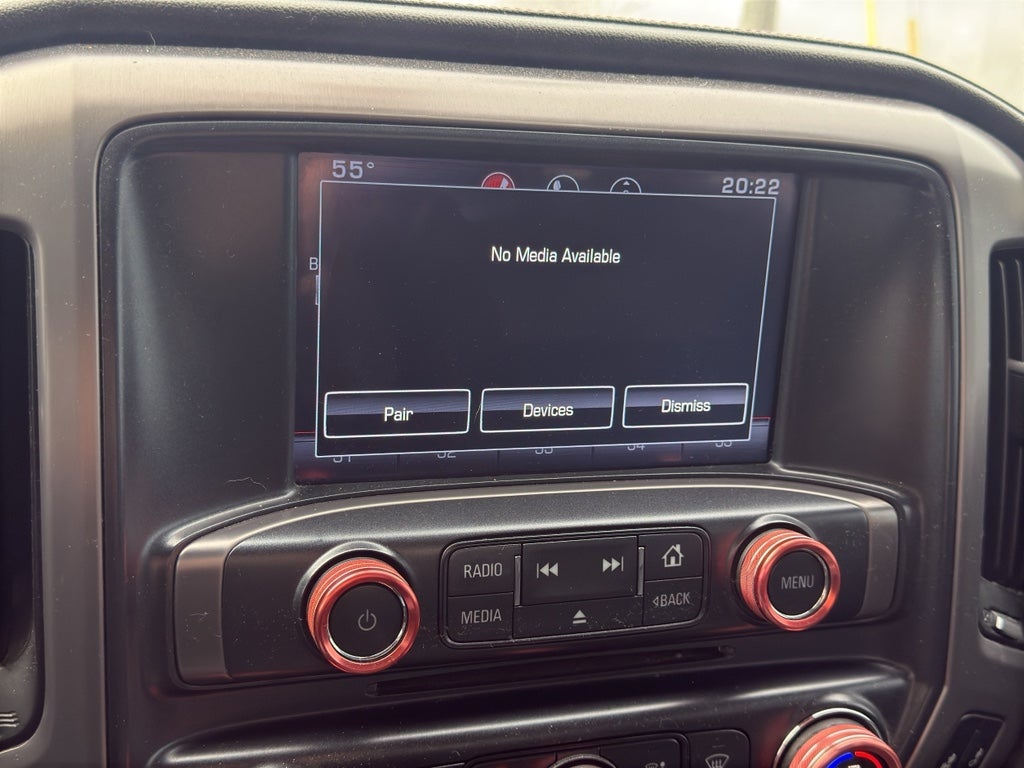

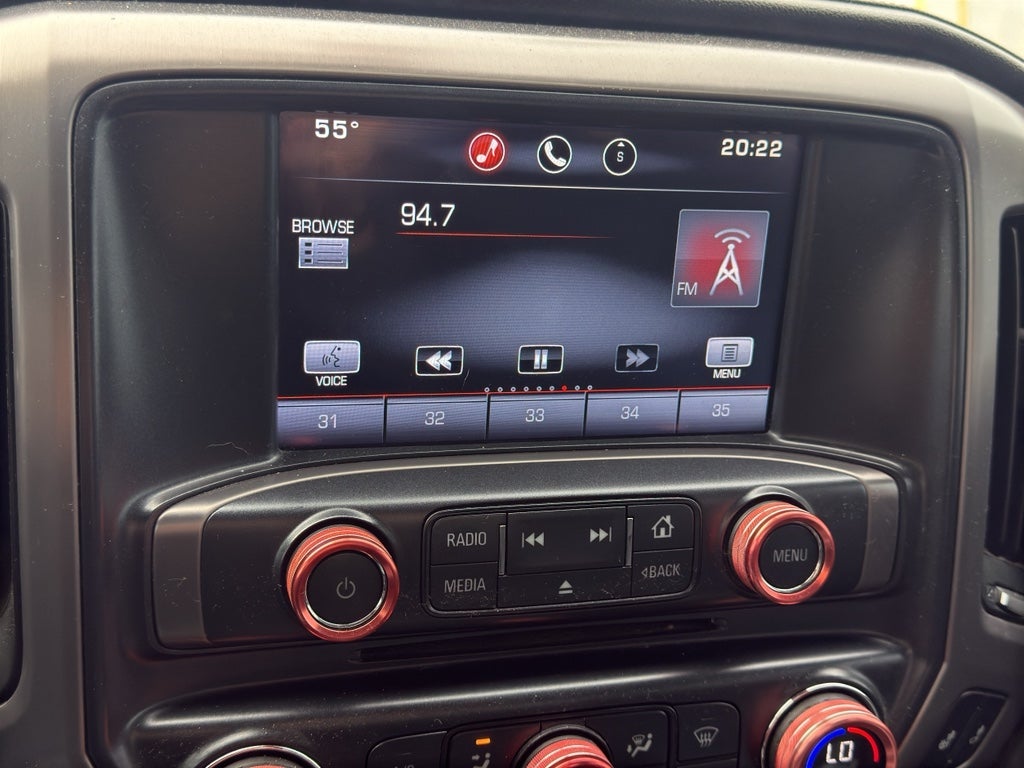

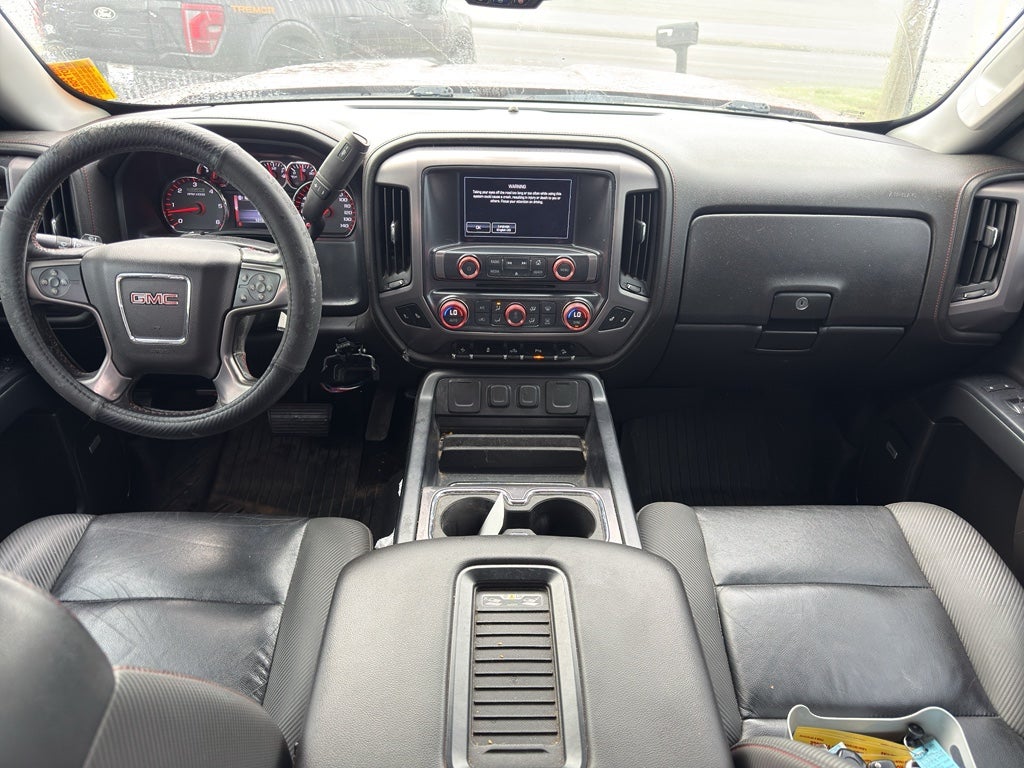

• Audio system, 8" Diagonal Color Touch Screen with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth streaming audio for music and most phones, Pandora Internet radio and voice-activated technology for radio and phone (Upgradeable to (IO6) 8" Diagonal Color Touch audio system with Navigation and IntelliLink.)
• Radio, HD (Included and only available with (IO5) IntelliLink 8" Diagonal Color Touch audio system or (IO6) IntelliLink 8" Diagonal Color Touch audio system with Navigation.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• 6-speaker audio system
• Single-slot CD/MP3 player (On Crew Cab model replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) Entertainment Package is ordered.)
• Bluetooth for phone personal cell phone connectivity to vehicle audio system
• Steering wheel audio controls

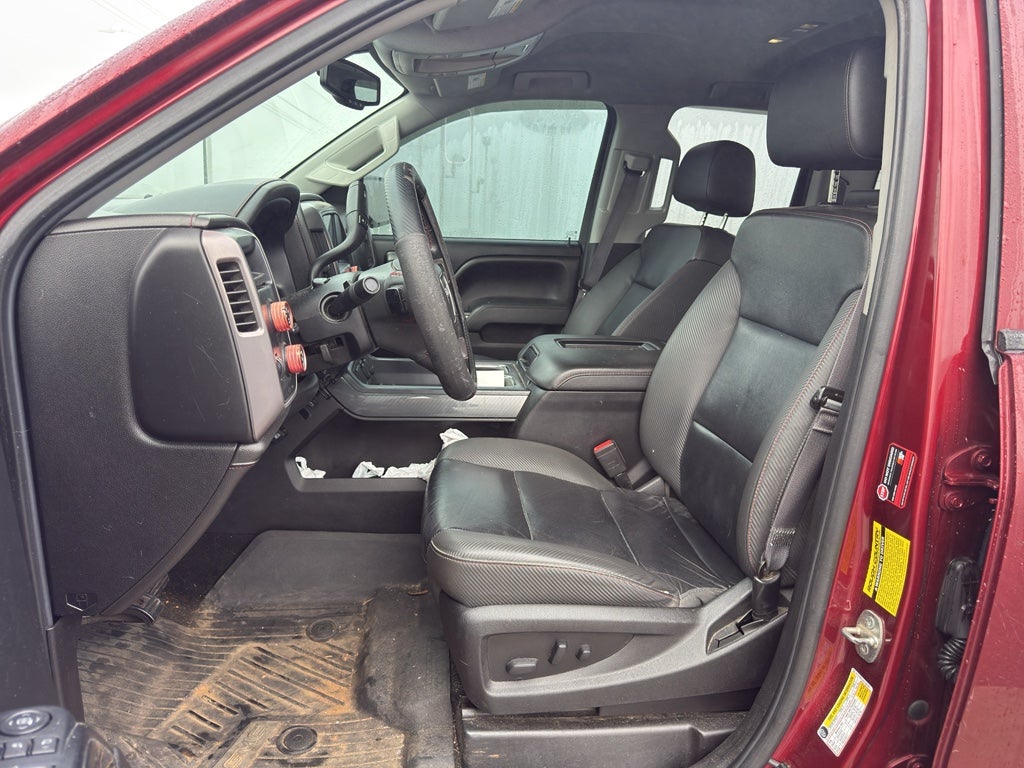

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2-position driver memory and adjustable outboard head restraints.
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

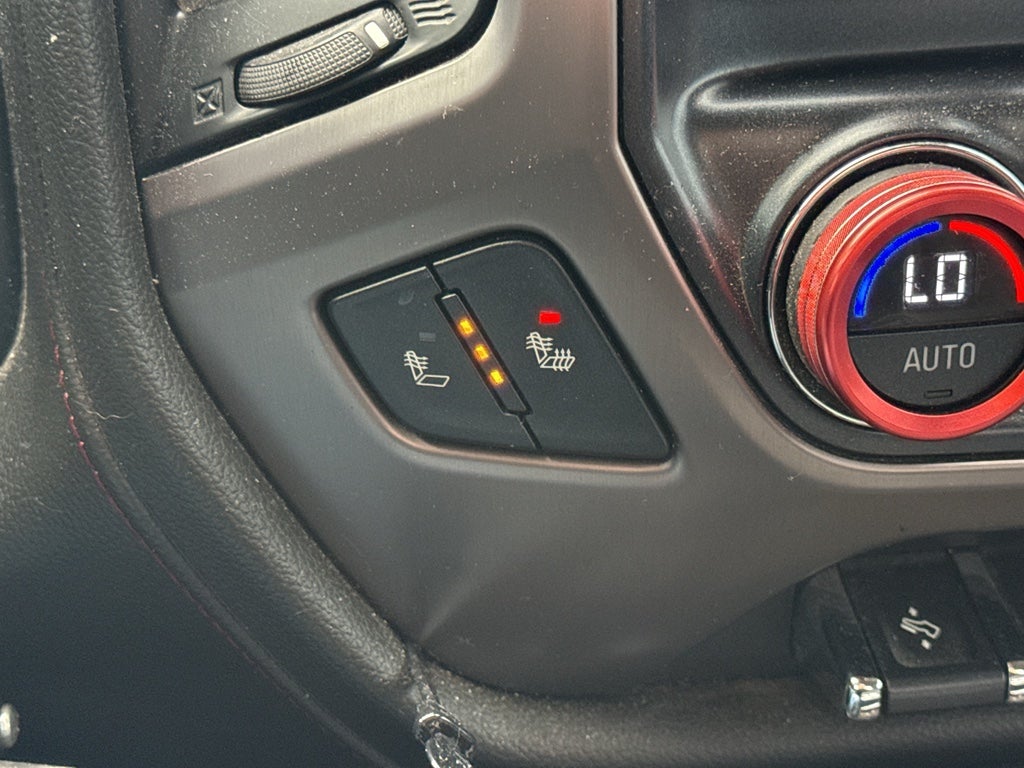

• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

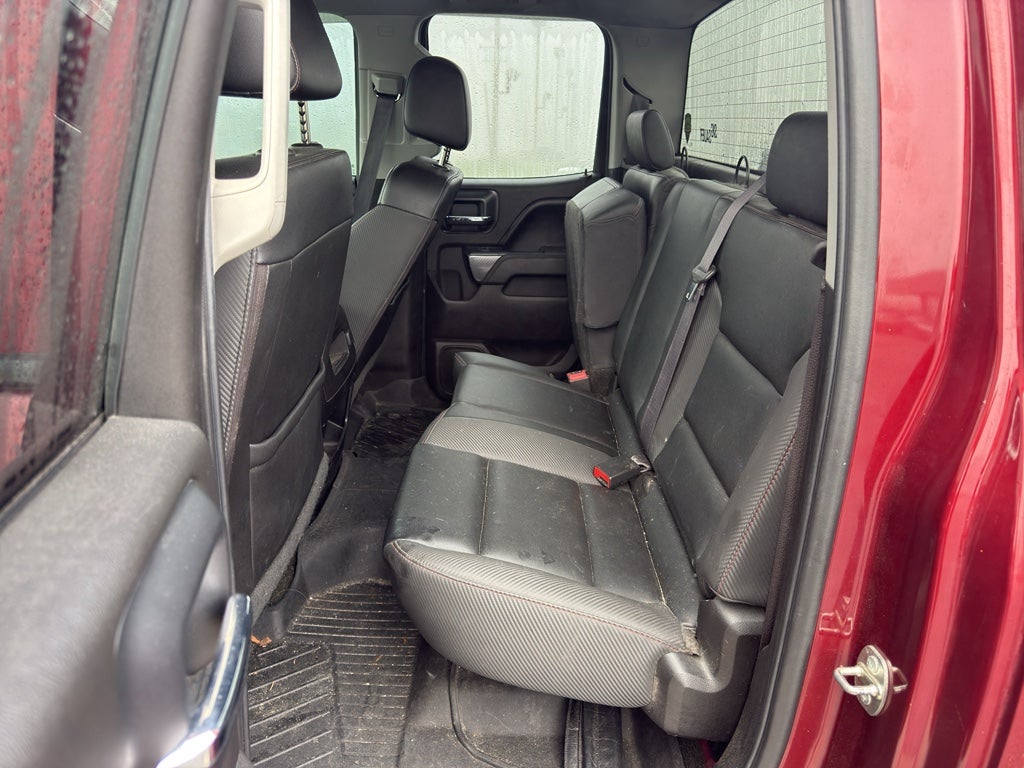

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Steering column, manual Tilt-Wheel and telescoping

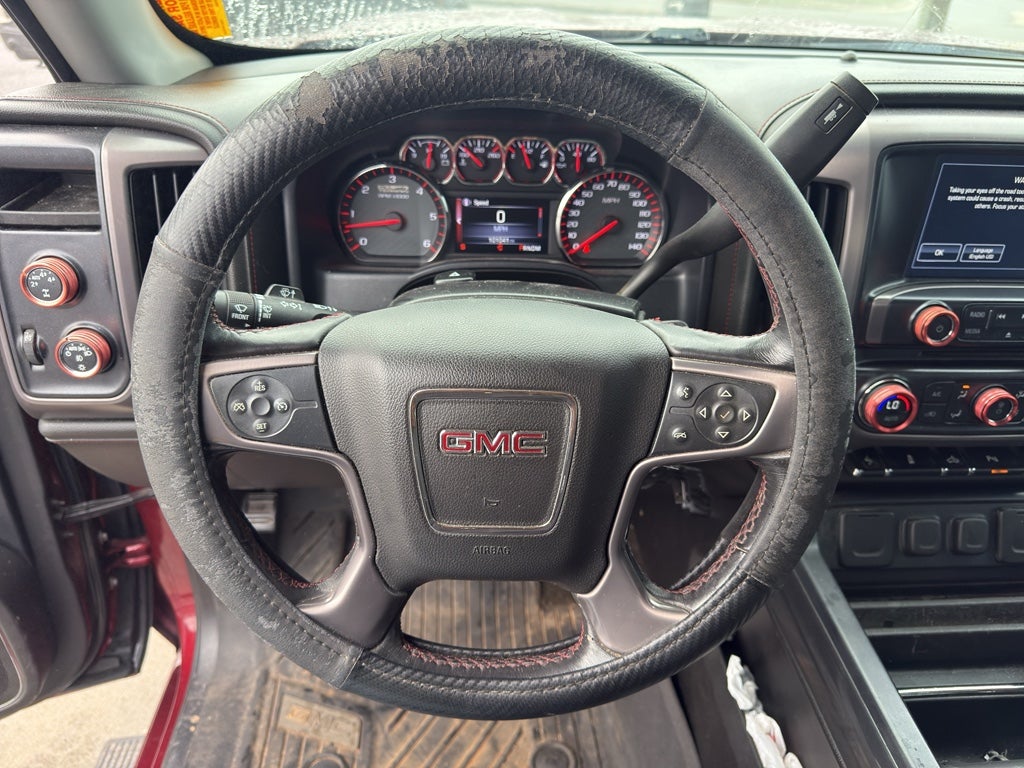

• Steering wheel, leather-wrapped with audio and cruise controls

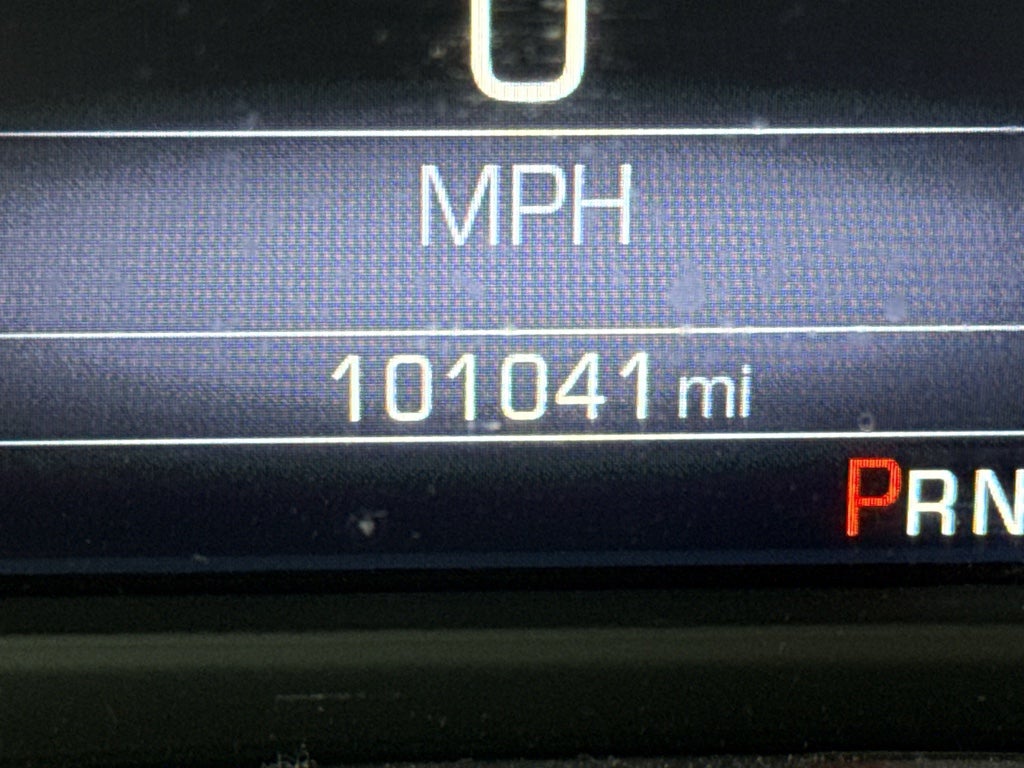

• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Pedals, power-adjustable
• Remote Keyless Entry (Includes (A91) remote locking tailgate.)
• Remote vehicle starter system
• Universal Home Remote
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry

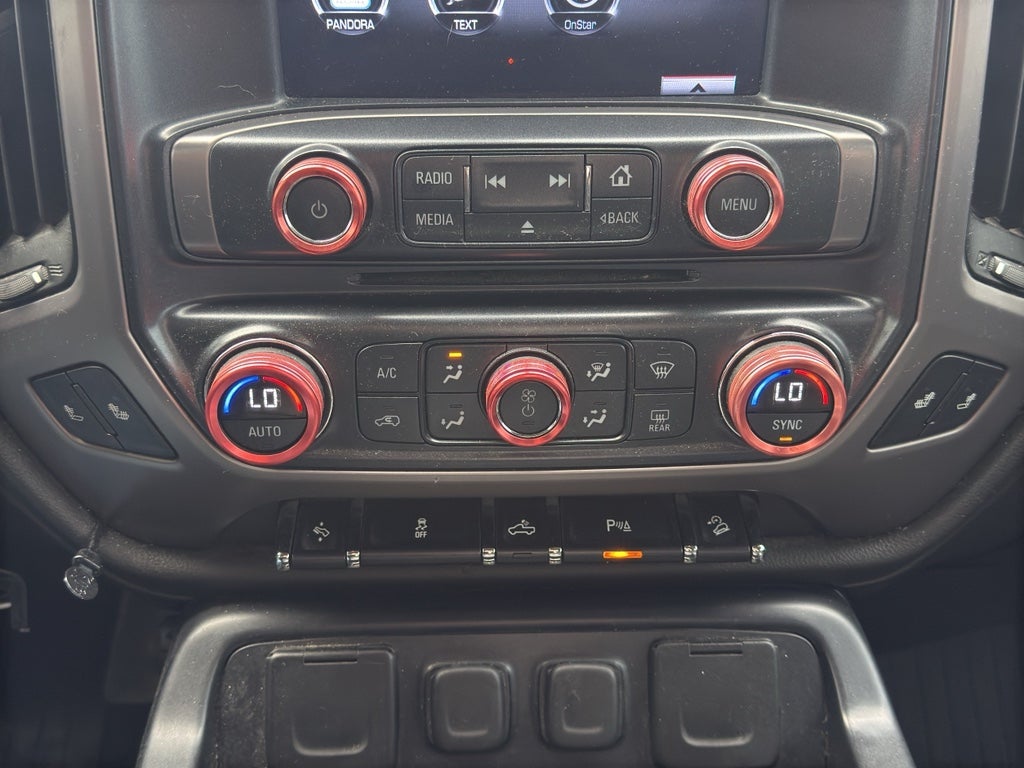

• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger on A-pillar
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

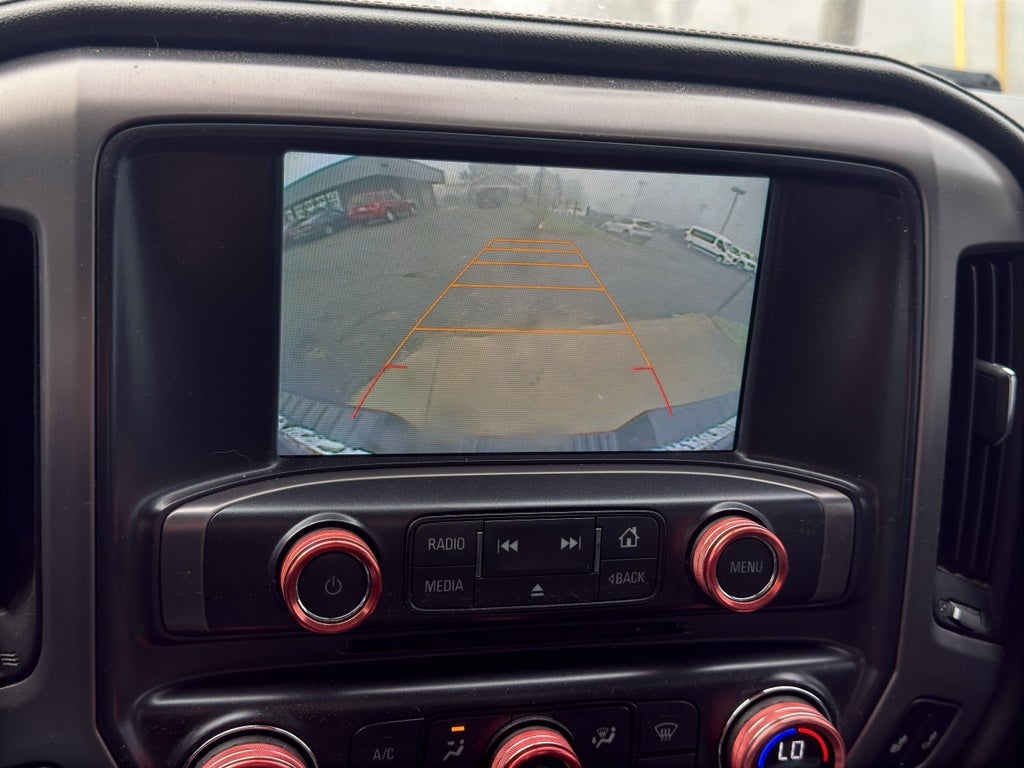

• Rear Vision Camera with dynamic guide lines
• Tire Pressure Monitoring System (does not apply to spare tire)

ALL TERRAIN X PACKAGE ($4,315)

includes (WBC) Cat-Back Performance Exhaust Upgrade System LPO (REG) 18" Black Painted Wheels (RI8) 18" Goodyear Wrangler DuraTrac 265/65R18 SL 114S blackwall MT tires with aggressive tire tread (PDP) full LED headlamps (RIA) all-weather floor liner LPO replaces (B58) color-keyed carpeted floor mats that normally comes with (GAT) All Terrain Package Black Sport Assist Step Black bed mounted tubular Sport bar (DP6) Black mirror caps Black beltline moldings (D75) body colored door handles (B86) body colored side moldings and B-Pillar vinyl wrap

SLT PREFERRED EQUIPMENT GROUP ($0)

Includes Standard Equipment

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET ($510)

with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console and storage pockets. (Includes (K4C) wireless charging.

BOSE SOUND WITH 6 SPEAKER SYSTEM ($500)

(7 speaker system including subwoofer when ordered with bucket seats) includes (NKC) noise control system.)

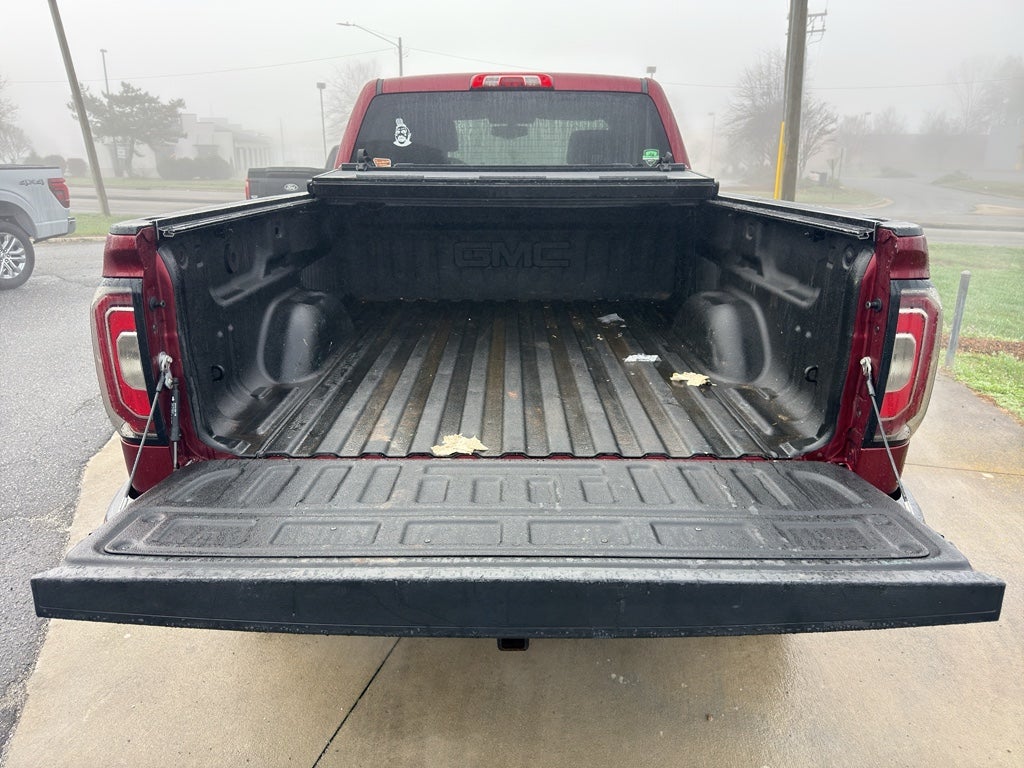

BED LINER, SPRAY-ON ($495)

Pickup box bed liner with GMC logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.

SUSPENSION PACKAGE, OFF-ROAD ($350)

includes Z71 chrome side front fender emblems monotube Rancho brand shocks and (K47) air cleaner (JHD) Hill Descent Control (NZZ) underbody shield

• All Terrain X Edition: P265/65R18SL MT 114S BW Goodyear Tires; Body Color Bodyside Moldings; Body Color Door Handles; 18" X 8.5" 5-Spoke Black Paint Alloy Wheels; 1st and 2nd Row Color-Keyed Carpeted Floor Mats; Cat-Back Performance Exhaust; All-Weather Floor Liner; Black Mirror Caps; High-Performance LED Headlamps
• All-Terrain Package: Bose Speaker System; Off-Road Suspension Package; 1st and 2nd Row Color-Keyed Carpeted Floor Mats; Body Color Rear Bumper with Cornersteps; Front Full Feature Power Reclining Bucket Seats; Body Color Front Bumper; Ultrasonic Rear Park Assist; Auto-Dimming Inside Rearview Mirror; Unique Body Color Grille Surround with Chrome Accents; Spray-On Pickup Box Bed Liner
• Preferred Equipment Group 4SA: LED Cargo Box Lighting; EZ Lift and Lower Tailgate; Chrome Door Handles; Rear Vision Camera with Dynamic Guide Lines; Rear 60/40 Folding Bench Seat (folds Up); Leather Appointed Seat Trim; Remote Vehicle Starter System; 5.3L EcoTec3 V8 Engine; Electric Rear Window Defogger; Theft Deterrent System (unauthorized Entry); Auxiliary External Transmission Oil Cooler; AM/FM Stereo with 8" Diagonal Color Touch Screen; 4.2" Diagonal Color Display Driver Info Center; Trailering Equipment; 110-Volt AC Power Outlet; Thin Profile LED Front Fog Lamps; 150 Amp Alternator; Steering Wheel Audio Controls; Universal Home Remote; Color-Keyed Carpeting with Rubberized Vinyl Floor Mats; Power Windows with Driver Express Up and Down; OnStar 6 Month Guidance Plan; Remote Keyless Entry; P265/70R17 AS BW Spare Tire; Single Slot CD/MP3 Player; 2-Speed Active Electronic Autotrac Transfer Case; Deep-Tinted Glass; Dual-Zone Automatic Climate Control; Power Folding and Adjustable Heated Outside Mirrors; Chrome Mirror Caps; Leather Wrapped Steering Wheel with Cruise Controls; Manual Tilt/telescoping Steering Column; Driver and Front Passenger Illuminated Vanity Mirrors; Front Frame-Mounted Black Recovery Hooks; OnStar with 4G LTE; LED Tailamps with Signature; Auto-Dimming Inside Rearview Mirror; Power Adjustable Pedals; Rear Wheelhouse Liners; Heavy-Duty Rear Locking Differential; Chrome Bodyside Moldings
• Front Full Feature Power Reclining Bucket Seats
• Bose Speaker System
• High-Performance LED Headlamps
• Spray-On Pickup Box Bed Liner
• Crimson Red Tintcoat
• Crimson Red Tintcoat
• Off-Road Suspension Package
• OnStar 4G LTE mobile hotspot internet access
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• AutoTrac part and full-time 4WD
• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Front wireless smart device charging
• Smart device remote start
• Mechanical
• OnStar Guidance vehicle tracker with vehicle slowdown
• Bluetooth® wireless audio streaming
• Dual-zone front climate control
• Immobilizer
• OnStar Guidance vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• OnStar RemoteLink smart device app link
• Trailer sway control
• External memory control
• Pandora internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• Automatic climate control
• UltraSonic rear parking sensors
• LED daytime running lights
• LED brake lights
• LED front fog lights
• Leather and metal-look steering wheel
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power driver and passenger door mirrors with tilt down in reverse
• Auto-dimming driver side mirror
• Power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Power adjustable pedals

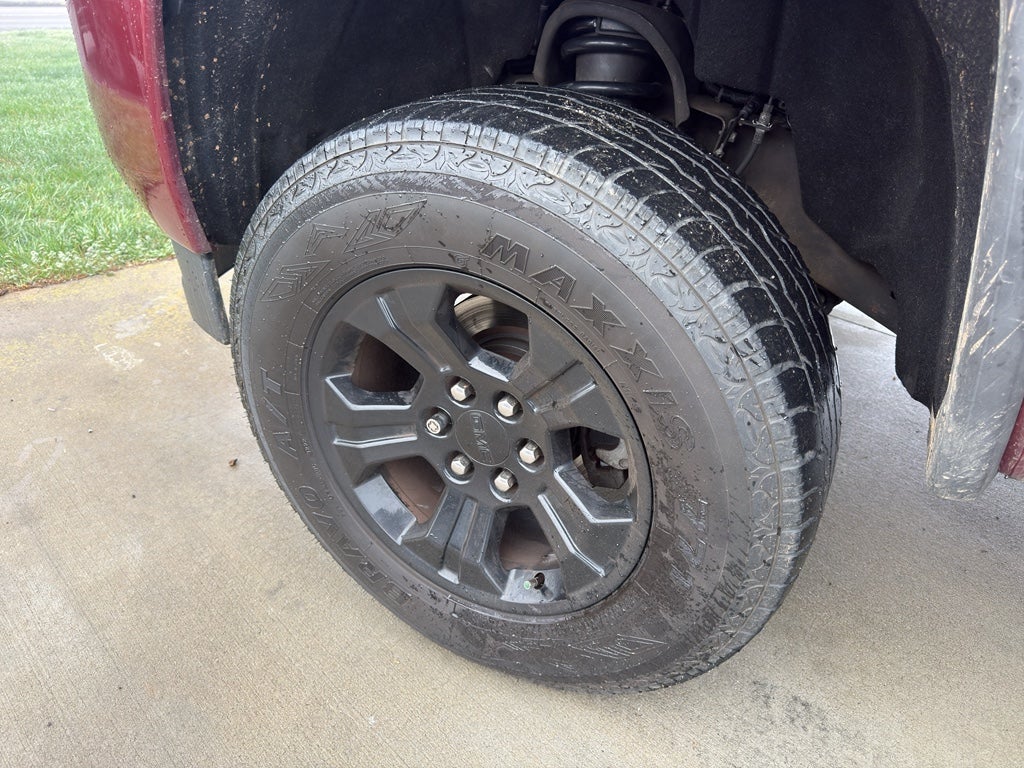

• 18 x 8.5-inch front and rear black aluminum wheels
• P265/65SR18 AT BSW front and rear tires
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 620
• Maximum Trailering Capacity (lbs): 11800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: RBX
• Rear Tire Order Code: RBX
• Spare Tire Order Code: RC4
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall w/o rear bumper (in): 229.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.90
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.00
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary

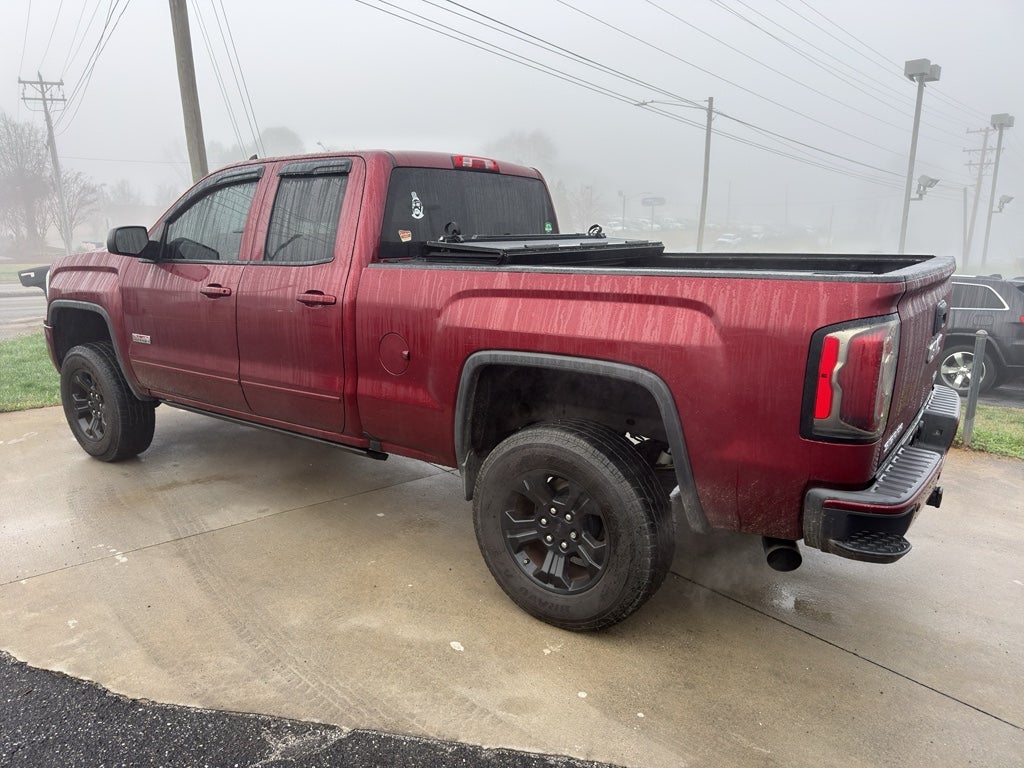

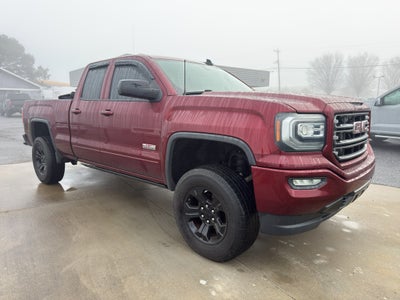

• Vehicle Name: GMC Sierra 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
